986/7 and 996 oil change guide.

By: Sam Torres



We all hate when a person is always asking what oil to use or how to change oil in a forum, when it has been covered thousands of time. it’s almost funny and sad how they get flamed by every user, bombarded with “did you use the search bar?”

Admit it, we’ve all been there; on both sides of it.

We’re here to help. I’ve compiled a guide with as much information as I could. Keep in mind that often times, some people do things differently and that is okay.

There’s quite a bit so let’s get straight to it.

Regular oil changes are essential for keeping your 996 Carrera or 986 Boxster running smoothly.

The flat‑six M96 series are high‑performance units and using the correct oil, filter, and process prevents wear, maintains efficiency, and extends engine life. The procedure is very similar between the 996 and 986.



Keep your area clean to avoid confusion.

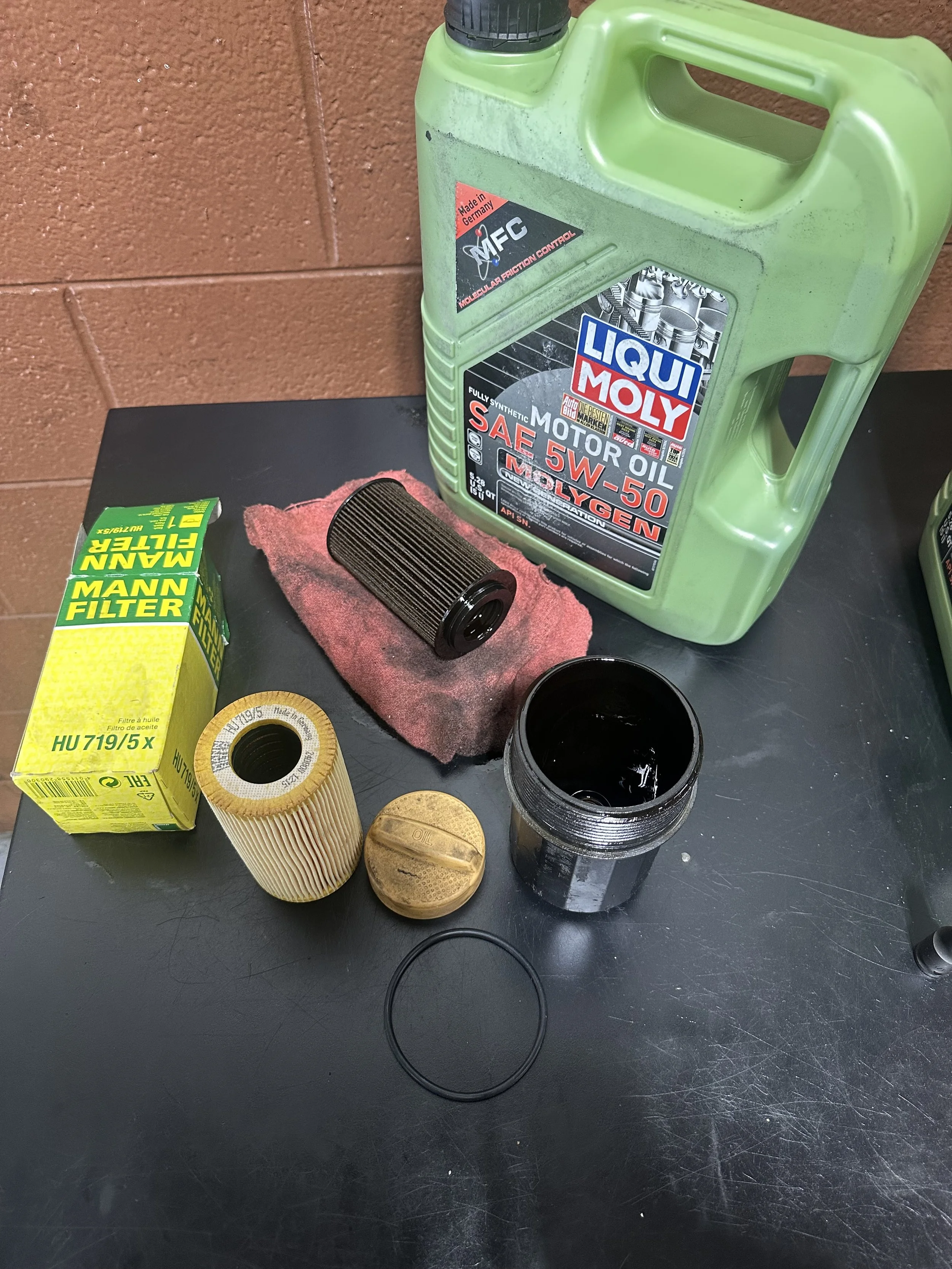

What You’ll Need:

- 9 quarts (≈ 8.5 litres) of 5W‑50 full synthetic oil.

- Oil filter part number: 996‑107‑225‑60 (OEM for 986/996 as listed)

- Oil filter housing / cap O‑ring / seal ring: 996‑107‑313‑51

- New crush washer for drain plug.

- If you do not already have it, now would be a good time to upgrade to a magnetic drain plug.

- 8 mm Allen (hex) socket or bit for the sump drain plug.

- 74 mm oil filter socket or correct wrench for the filter housing.

- Torque wrench (capable of ft‑lb/Nm).

- Oil drain pan, funnel, rags, gloves.


Steps

1. Warm Up the Engine:

   Start the car and let it idle or run for 5–10 minutes. This warms the oil, thins it, and helps drain contaminants.

2. Safely Lift the Car:

Make sure the car is stable and won’t shift.

3. Drain the Oil:

   Locate the sump drain plug under the front of the engine.

Using the 8 mm Allen socket, Remove the plug, and allow the oil to fully drain into your pan. Once drained, install a new crush washer on the plug, reinstall it or replace with upgraded plug, and torque to 37 ft‑lb (≈ 50 Nm).


4. Replace the Oil Filter:

   Locate the oil filter housing (on right side of engine sump for these models).

Remove the housing cap using the 74 mm socket or correct tool. Remove the old filter and the old O‑ring/seal from the cap. Lubricate the new O‑ring with fresh oil, install the new filter and O‑ring, reinstall the cap.

Torque the cap to 19 ft‑lb (≈ 26 Nm).

Don’t rush, and pay attention to your work.

5. Add New Oil:

   Pour in about 8 quarts of your 5W-50 full synthetic initially.

Start the engine, let it run for about one minute, shut it off and wait a few minutes.

Check the dipstick level on level ground and add oil to reach approximately 7-10 quarts total capacity.

6. Check for Leaks:

   Inspect around the sump drain plug and filter housing cap. Look for any dripping or seepage.

If tracking or racing use, repeat the check after a short drive.

7. Dispose of Used Oil Properly:

Extra tips:

- Overfilling can cause oil foaming or excess pressure. keep within spec.

- Inspect the drained oil for metal particles or debris if you track the car. These may indicate engine wear.  This is important on Porsche engines.

  • Keep a maintenance record: date, mileage, oil type, filter part‑number.
